Description

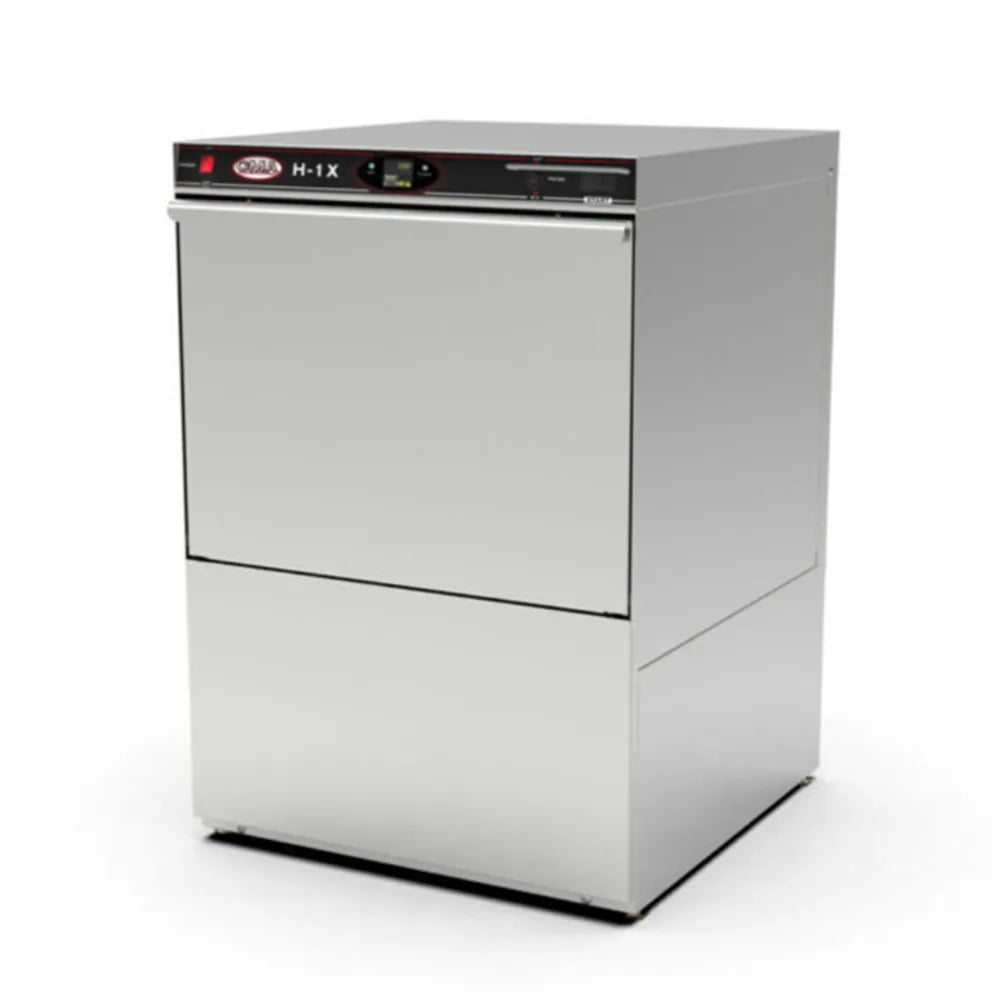

Operators can sanitize as much as 24 racks of glassware per hour with the CMA Dishmachines H-1X High Temp Rack Undercounter Glass Washer. Its high-temperature water sanitizes with a built-in booster heater for optimal cleaning, and it features a unique dump and fill cycle to drain wash water every cycle for a clean wash. Its pumped wash and rinse ensures exact water pressure, while its Safe T Temp feature offers a high-temperature final rinse every cycle. For simple machine monitoring, its top-mounted LCD display alerts operators of machine status and has simple-to-operate controls.
For flexible use, the CMA Dishmachines H-1X high-temp rack undercounter glass washer has removable upper and lower spray arms. Its built-in chemical pumps regulate chemical usage, while its pumped drain enables flexible installation without a floor drain. Designed with a pump purging system, this unit eliminates soil and chemical carryover during rinse cycles. For safe operation, it has a door safety switch, built-in prime switches, and an instant start. Overall, this piece measures 237/8 inches wide by 25 inches deep by 341/2 inches high.
Product Details
- 1.4-gal. wash tank capacity
- Washes 24 racks and 96 covers per hour
- Undercounter design
- Stainless steel construction
- High temperature water sanitizing with built-in booster heater
- Unique dump & fill cycle drains wash water every cycle and refills with high-temperature water
- Pumped wash and rinse ensures exact water pressure for excellent results
- Safe T Temp feature provides a high temperature final rinse every cycle
- Top-mounted LCD display alerts users of machine status
- Simple-to-operate controls
- Removable spray arm system features upper and lower spray arms
- Built-in chemical pumps assure consistent chemical usage
- Pumped drain enables flexible installation without a floor drain
- Pump purging system eliminates soil and chemical carryover during rinse cycle
- Built-in prime switches and instant start
- Large 141/4 in. L x 141/4 in. W door opening
- Includes door safety switch for safe operation
- Factory-installed detergent and rinse pump
- Automatic fill feature
- Fits 20 in. L x 20 in. W dishracks
- Includes (1) dishrack
- Wash cycle temperatures: 150 to 160 degrees F
- Rinse cycle temperatures: 180 to 195 degrees F
- Recommended water temperature: 140 degrees F
- Minimum water temperature: 110 degrees F
- 3/4-in. water inlet
- 3/4-in. drain connection
- Requires 3-in. deep minimum clearance
Dimensions & Utilities
- 237/8 in. W x 25 in. D (401/4 with door open) x 331/2 in. H
- 1 HP, 22 A
- 8 kW
- 208 V/60 Hz/1ph
CMA Dishmachines H-1X Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | CMA Dishmachines |
| Depth (in) | 25 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Height (in) | 33.5 |
| Hertz | 60 |
| Racks per Hour | 24 |
| Special Features | Built in Booster |
| Special Features | Dual Wash Arms |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Parts & Labor Limited Warranty |
| Width (in) | 23.88 |
| Series | Energy Mizer® |
| Glasses per hour | 864 |
| Phase | 1 |
| Product | Glass Washers |
| Product Type | Dishwashing Equipment & Supplies |
| Cycle Period | 2 min 30 sec |
| Water Inlet (in) | 3/4 |
| Weight | 165.00 |
Spec Sheet
