Description

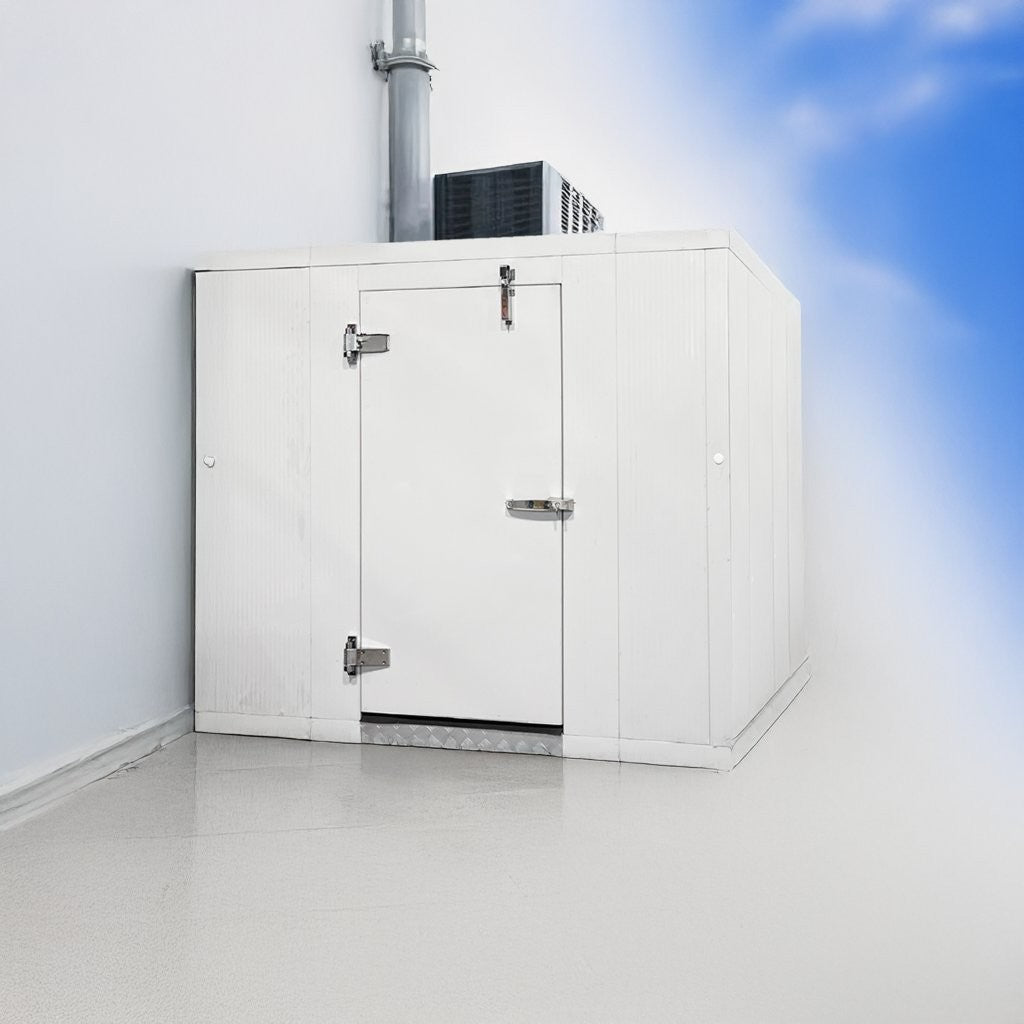

10 x 23 Walk-In Freezer for Grocery and Supermarket Operations
The Astra AFWF10X23 is a nominal 10 x 23 walk-in freezer for planning frozen inventory storage in a grocery store, market or foodservice operation. This listing identifies the box only configuration. Use it to compare the enclosure and specified equipment with your storage workflow before ordering. A freezer purchase involves more than fitting a rectangle into a backroom: product temperatures, incoming loads, floor construction and service access all belong in the final project review.
Model details at a glance
| Model | AFWF10X23 |
|---|---|
| Nominal footprint | 10 x 23 ft |
| Equipment type | Walk-In Freezer |
| Refrigeration configuration | No Refrigeration |
| Listed exterior box dimensions | 9' 10"W x 23' L x 7' 7"H |
| Listed floor configuration | With Floor |
| Listed shipping weight | 2351 lb |
Size, access and usable space
The 10 x 23 designation identifies the nominal footprint; it is not a substitute for a dimensioned installation drawing. Exact exterior dimensions, usable interior dimensions and assembly clearances are not confirmed in the current structured listing for AFWF10X23. Request those measurements before committing to a room layout. Include the full access route from the delivery point to the installation area. A nominally suitable room can still be unsuitable if doorways, ceiling obstructions or service access prevent safe placement.
For this larger nominal 10 x 23 footprint, plan receiving, storage and picking together. Identify which inventory needs frequent access and which can sit farther from the entrance. If you are considering multiple shelf runs or a central aisle, test the proposed arrangement against the actual interior measurements. Do not allocate every available inch to shelving; staff movement and access for maintenance remain part of usable planning.
Refrigeration and operating requirements
Refrigeration is not included in this box-only listing. The enclosure must be paired with equipment selected for the intended operating conditions. Share the stored product type, desired temperature, incoming product temperature, loading pattern and expected door use with the refrigeration contractor. These details affect equipment selection; a nominal box size by itself does not establish the required capacity. Keep the enclosure order and refrigeration specification coordinated so openings, equipment placement and installation responsibilities are agreed in advance.
Floor configuration and site preparation
The catalog identifies AFWF10X23 as With Floor. Review the floor details with the installer, including the supporting surface, finished entry level and the loads from shelving and handling equipment. A supplied floor does not remove the need to evaluate the building substrate or the freezer installation as a whole. If carts or other wheeled equipment will enter, confirm the threshold arrangement and whether a compatible ramp is required before specifying accessories.
Layouts, alternatives and accessories
Request the model-specific panel and door layout before finalizing the order. Check the entrance position against shelving, neighboring equipment and the available approach. If a drawing is not shown for this SKU, ask for it rather than assuming another model's arrangement will fit. Record any required door size, hinge direction or access arrangement in your quote request so the supplied configuration can be confirmed against your requirements.
Related listings include RR10X23 matching rain roof cover. Shelving, lighting, entry accessories and other additions should be specified for the actual model and use. They are not automatically included because they appear in a photograph or related-product area. For an outdoor installation, confirm the complete outdoor specification; a roof cover alone does not establish that every component is suitable for exposure. Review accessory compatibility and quantities before submitting the order.
Questions to resolve before ordering
Does the listed size include installation clearance?
No. Nominal size is a product designation. Use the exact box dimensions and approved equipment drawings, then account for assembly, door movement, ventilation and service access required by the selected configuration.
What should I send with a quote request?
Include model AFWF10X23, the installation address, room measurements, photos of the site and the products you plan to store. Add the preferred layout, floor requirements and refrigeration selection so the team can review one coordinated specification.
Plan your project with Supermarket World
Supermarket World is the supermarket-focused division of Atlantic Restaurant & Supermarket Equipment, serving the Tri-State region since 1998. From its Kearny, New Jersey base, the team supports equipment planning for independent markets, grocery stores and larger projects along the New York–Washington, DC corridor. Request a project quote to confirm the equipment and service scope, or purchase the listed configuration when its specifications match your approved plan.
Coordinate delivery before installation
Before arranging delivery, confirm the receiving location, unloading arrangements and the route to the installation area. Share doorway measurements, access restrictions and any appointment requirements with the team. Keep the final model, selected equipment and drawings together so the receiving and installation teams work from the same information. Discuss any service or installation charges separately rather than assuming they are part of the product listing. At receiving, compare the delivered items with the packing list and record any visible damage or missing components before scheduling assembly.
