Description

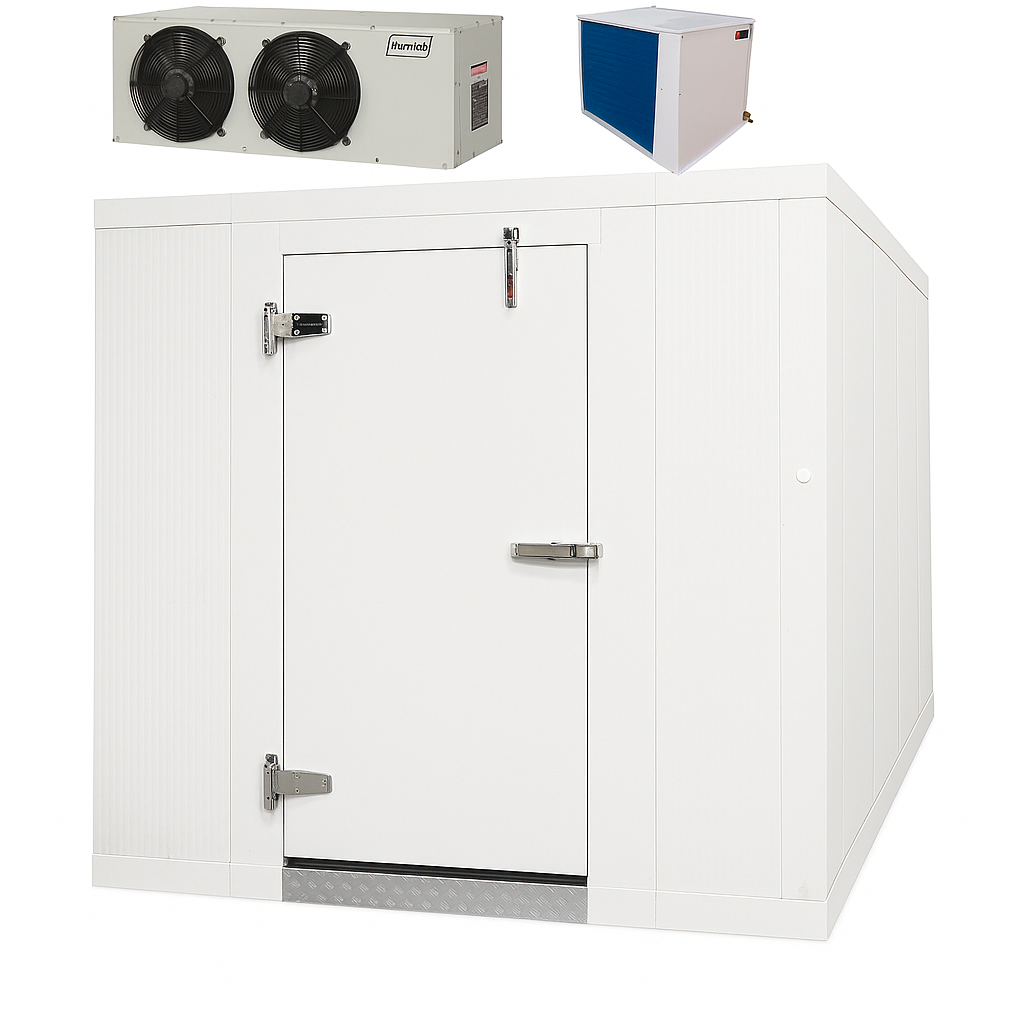

12 x 20 Walk-In Freezer with Floor and Remote Refrigeration
The Astra AFWF12X20-RM offers 12 x 20 walk-in freezer with floor and remote refrigeration for grocery and supermarket storage planning. Use the model-specific specifications to compare the available space, floor configuration and refrigeration arrangement for your store.
Model configuration
- Model: AFWF12X20-RM
- Nominal size: 12' x 20'
- Box type: Freezer
- Floor configuration: With Floor
- Refrigeration: Remote Refrigeration
- External dimensions: 11' 6"W x 19' 8"L x 7' 7"H
- Internal dimensions: 10' 10"W x 19'L x 7' 3"H
- Listed box shipping weight: 2292 lb
Refrigeration specification
Condensing Unit: Turbo Air Outdoor Condensing Unit, 4.5 HP, Low Temp, Air Cooled, 208-230V/60Hz/1Ph, Copeland Scroll Compressor, R404A, R407C, R448A / R449A
Evaporator: Turbo Air Evaporator, Electric Defrost, EC Motor, Pre-Assembled (R448A, R449A TXV, Solenoid Valve, Digital Temperature Controller), 4 Fans, 15,700 BTU, 208-230V/60Hz/1Ph
Where indoor and outdoor equipment alternatives are listed, confirm the required application and final equipment selection before ordering; the alternatives are not both included.
Plan your installation
Nominal size is a product designation, not an installation clearance. Check the exact external dimensions, door location, required access and refrigeration clearances against the product drawings. Confirm site preparation, electrical service and installation scope before placing your order.
Need help comparing configurations or equipping a complete store? Request a quote from Supermarket World with your model number and project requirements.

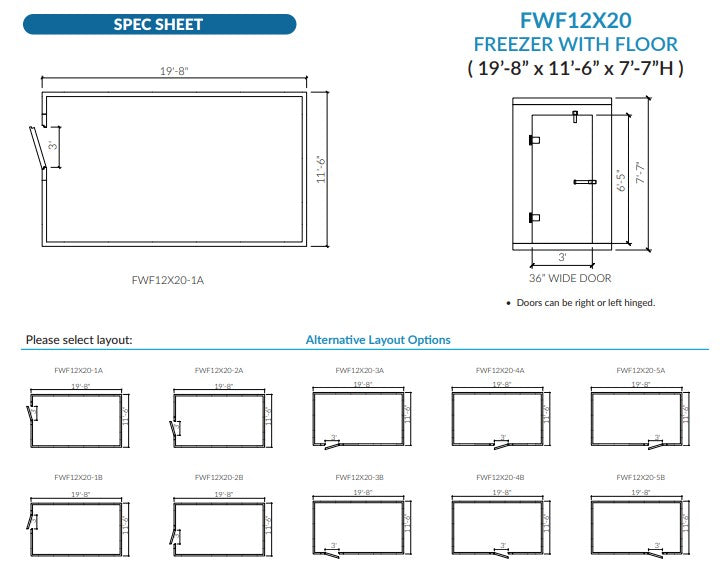

Door layout drawings
Compare the available panel and door arrangements. Select your preferred layout above or ask our team to confirm the best fit.
Other configurations & accessories
These are separate product listings. Selecting a different configuration changes the product and price; accessories are not automatically included.
