Description
6 x 28 Walk-In Freezer for Grocery and Supermarket Operations

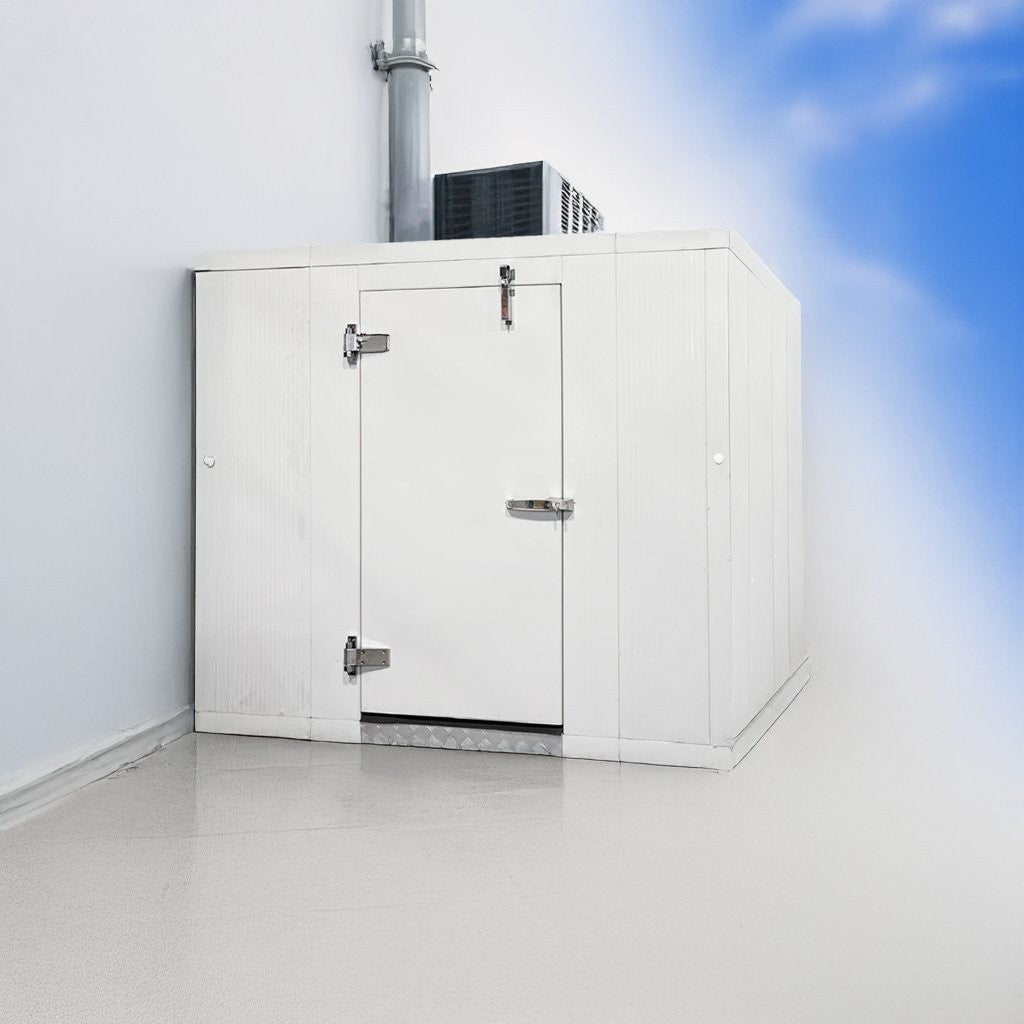

The Astra AFWF6X28 is a nominal 6 x 28 walk-in freezer for planning frozen inventory storage in a grocery store, market or foodservice operation. This listing identifies the box only configuration. Use it to compare the enclosure and specified equipment with your storage workflow before ordering. A freezer purchase involves more than fitting a rectangle into a backroom: product temperatures, incoming loads, floor construction and service access all belong in the final project review.
Model details at a glance
| Model | AFWF6X28 |
|---|---|
| Nominal footprint | 6 x 28 ft |
| Equipment type | Walk-In Freezer |
| Refrigeration configuration | No Refrigeration |
| Listed exterior box dimensions | 6' 7"W x 27' 11"L x 7' 7"H |
| Listed interior box dimensions | 5' 11"W x 27' 3"L x 7' 3"H |
| Listed floor configuration | With Floor |
| Listed shipping weight | 2207 lb |
Size, access and usable space
For AFWF6X28, the catalog lists exterior box dimensions of 6' 7"W x 27' 11"L x 7' 7"H and interior dimensions of 5' 11"W x 27' 3"L x 7' 3"H. Use the exterior measurement to check the proposed location and the interior measurement to develop a storage layout. The nominal 6 x 28 designation is a model-size reference, not a promise of clear floor area or installation clearance. Allow separately for doors, equipment, access to connections and the space required to assemble the panels.
This nominal 6-foot-wide format deserves a careful aisle check. Draw the proposed shelf depths and door swing before deciding how many storage runs to use. Compare one-sided and two-sided shelving arrangements with the clearance your staff and handling equipment need. A longer enclosure can provide more shelving positions without solving a narrow access path, so assess width and length independently.
Refrigeration and operating requirements
Refrigeration is not included in this box-only listing. The enclosure must be paired with equipment selected for the intended operating conditions. Share the stored product type, desired temperature, incoming product temperature, loading pattern and expected door use with the refrigeration contractor. These details affect equipment selection; a nominal box size by itself does not establish the required capacity. Keep the enclosure order and refrigeration specification coordinated so openings, equipment placement and installation responsibilities are agreed in advance.
Floor configuration and site preparation
The catalog identifies AFWF6X28 as With Floor. Review the floor details with the installer, including the supporting surface, finished entry level and the loads from shelving and handling equipment. A supplied floor does not remove the need to evaluate the building substrate or the freezer installation as a whole. If carts or other wheeled equipment will enter, confirm the threshold arrangement and whether a compatible ramp is required before specifying accessories.
Layouts, alternatives and accessories
This product has 10 linked layout drawings for review. Compare the actual door and panel arrangement with your site plan; a layout image is not permission to interchange every door size, hinge position or panel. Record the chosen drawing with your order so the required arrangement can be checked. Door size and layout selection should be reviewed as separate specification details, and neither should be inferred solely from the product photograph.

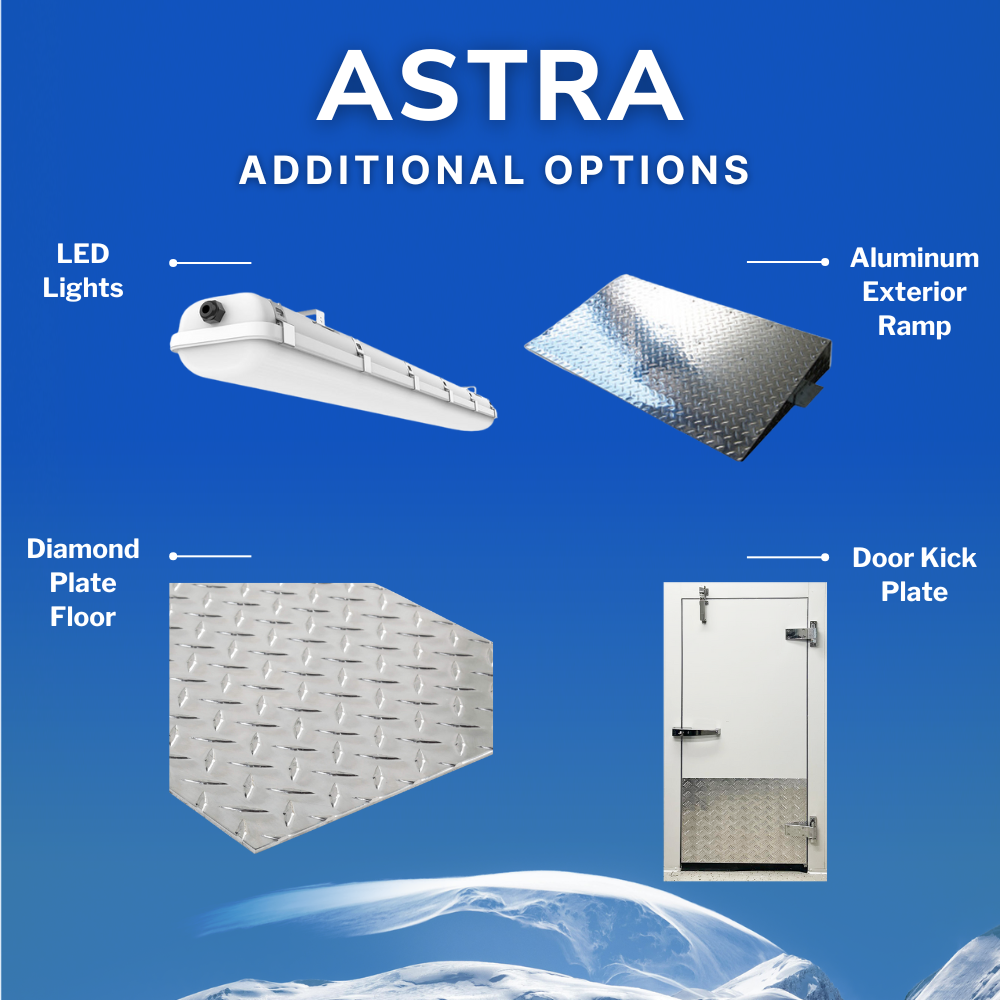

Related listings include AFWF6X28-TM top-mount alternative, AFWF6X28-RM remote alternative, RR6X28 matching rain roof cover. Shelving, lighting, entry accessories and other additions should be specified for the actual model and use. They are not automatically included because they appear in a photograph or related-product area. For an outdoor installation, confirm the complete outdoor specification; a roof cover alone does not establish that every component is suitable for exposure. Review accessory compatibility and quantities before submitting the order.
Questions to resolve before ordering
Does the listed size include installation clearance?
No. Nominal size is a product designation. Use the exact box dimensions and approved equipment drawings, then account for assembly, door movement, ventilation and service access required by the selected configuration.
What should I send with a quote request?
Include model AFWF6X28, the installation address, room measurements, photos of the site and the products you plan to store. Add the preferred layout, floor requirements and refrigeration selection so the team can review one coordinated specification.
Plan your project with Supermarket World
Supermarket World is the supermarket-focused division of Atlantic Restaurant & Supermarket Equipment, serving the Tri-State region since 1998. From its Kearny, New Jersey base, the team supports equipment planning for independent markets, grocery stores and larger projects along the New York–Washington, DC corridor. Request a project quote to confirm the equipment and service scope, or purchase the listed configuration when its specifications match your approved plan.
Coordinate delivery before installation
Before arranging delivery, confirm the receiving location, unloading arrangements and the route to the installation area. Share doorway measurements, access restrictions and any appointment requirements with the team. Keep the final model, selected equipment and drawings together so the receiving and installation teams work from the same information. Discuss any service or installation charges separately rather than assuming they are part of the product listing. At receiving, compare the delivered items with the packing list and record any visible damage or missing components before scheduling assembly.
