8 x 10 Walk-In Freezer for Grocery and Supermarket Operations
The Astra AFWF8X10-TM is a nominal 8 x 10 walk-in freezer for planning frozen inventory storage in a grocery store, market or foodservice operation. This listing identifies the top-mount refrigeration configuration. Use it to compare the enclosure and specified equipment with your storage workflow before ordering. A freezer purchase involves more than fitting a rectangle into a backroom: product temperatures, incoming loads, floor construction and service access all belong in the final project review.
Model details at a glance
| Model | AFWF8X10-TM |
|---|---|
| Nominal footprint | 8 x 10 ft |
| Equipment type | Walk-In Freezer |
| Refrigeration configuration | Top-Mount Refrigeration |
| Listed exterior box dimensions | 8' 2"W x 9' 10"L x 7' 7"H |
| Listed interior box dimensions | 7' 6"W x 9' 2"L x 7' 3"H |
| Listed floor configuration | With Floor |
| Listed shipping weight | 1142 lb |
Size, access and usable space
For AFWF8X10-TM, the catalog lists exterior box dimensions of 8' 2"W x 9' 10"L x 7' 7"H and interior dimensions of 7' 6"W x 9' 2"L x 7' 3"H. Use the exterior measurement to check the proposed location and the interior measurement to develop a storage layout. The nominal 8 x 10 designation is a model-size reference, not a promise of clear floor area or installation clearance. Allow separately for doors, equipment, access to connections and the space required to assemble the panels.
For the nominal 8 x 10 footprint, sketch both shelving and the working aisle before choosing accessories. Place frequently retrieved stock where staff can reach it without moving other products. Keep the door swing and loading area visible on the sketch rather than treating them as spare storage space. Final shelf lengths and depths should follow the actual interior dimensions, not the rounded model designation.
Refrigeration and operating requirements

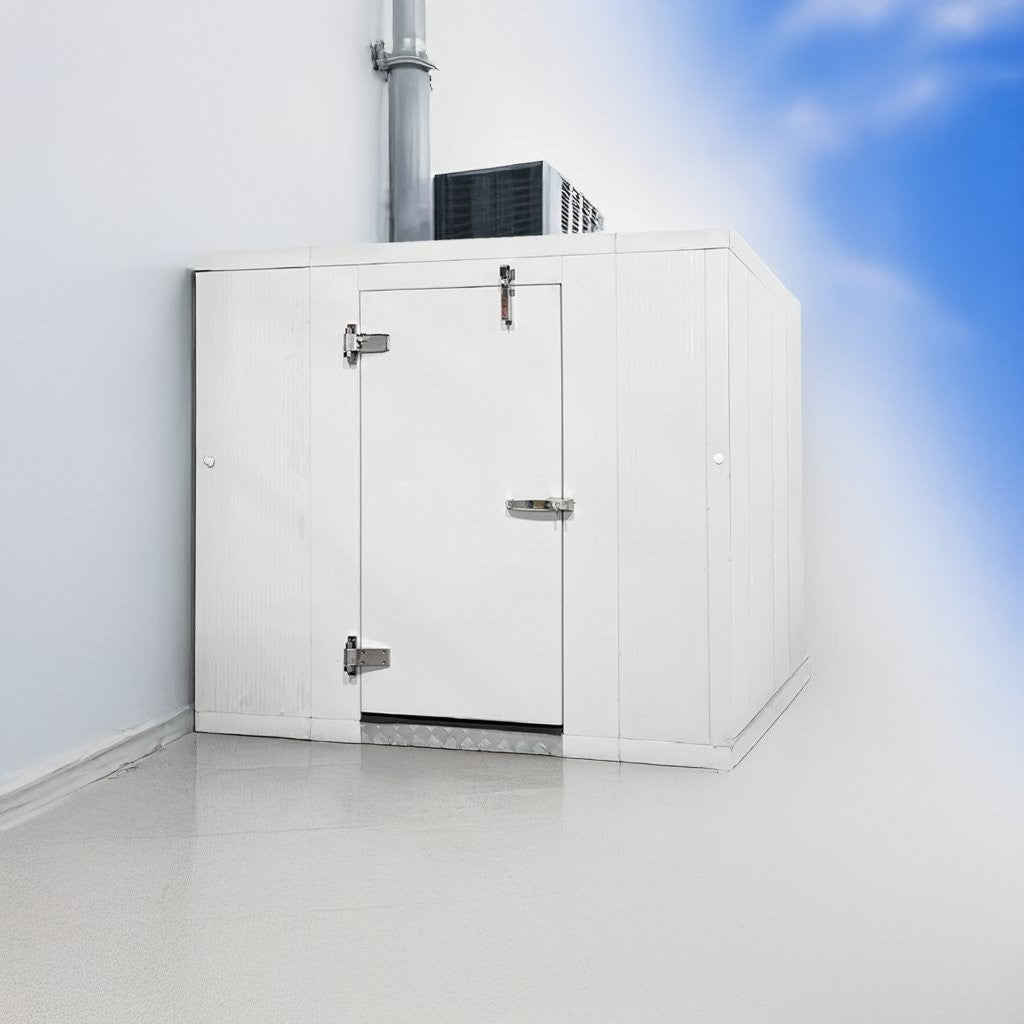

This SKU is listed with top-mount refrigeration. Plan overhead space for the equipment as well as access for servicing it; the box height alone does not describe the total installation envelope. Review the selected unit's requirements with the installer before finalizing the location. A top-mount package does not mean electrical connection, site preparation or commissioning is included in the product price. Where the catalog lists indoor and outdoor alternatives, they describe alternative selections, not two systems supplied together.
Catalog equipment specification
Indoor Top Mount: 2 x Turbo Air Indoor Package Unit, Top-Mount, Smart 7, Low Temp, 4,500 BTU, 208-230V/60Hz/1Ph, R290
Outdoor Top Mount: 2 x Turbo Air Outdoor Package Unit, Top-Mount, Smart 7, Low Temp, 4,500 BTU, 208-230V/60Hz/1Ph, R290
The specification above is the current catalog description. Confirm the exact supplied equipment and site suitability on the final quote.
Floor configuration and site preparation
The catalog identifies AFWF8X10-TM as With Floor. Review the floor details with the installer, including the supporting surface, finished entry level and the loads from shelving and handling equipment. A supplied floor does not remove the need to evaluate the building substrate or the freezer installation as a whole. If carts or other wheeled equipment will enter, confirm the threshold arrangement and whether a compatible ramp is required before specifying accessories.
Layouts, alternatives and accessories
This product has 8 linked layout drawings for review. Compare the actual door and panel arrangement with your site plan; a layout image is not permission to interchange every door size, hinge position or panel. Record the chosen drawing with your order so the required arrangement can be checked. Door size and layout selection should be reviewed as separate specification details, and neither should be inferred solely from the product photograph.
Related listings include RR8X10 matching rain roof cover. Shelving, lighting, entry accessories and other additions should be specified for the actual model and use. They are not automatically included because they appear in a photograph or related-product area. For an outdoor installation, confirm the complete outdoor specification; a roof cover alone does not establish that every component is suitable for exposure. Review accessory compatibility and quantities before submitting the order.
Questions to resolve before ordering
Does the listed size include installation clearance?
No. Nominal size is a product designation. Use the exact box dimensions and approved equipment drawings, then account for assembly, door movement, ventilation and service access required by the selected configuration.
What should I send with a quote request?
Include model AFWF8X10-TM, the installation address, room measurements, photos of the site and the products you plan to store. Add the preferred layout, floor requirements and refrigeration selection so the team can review one coordinated specification.
