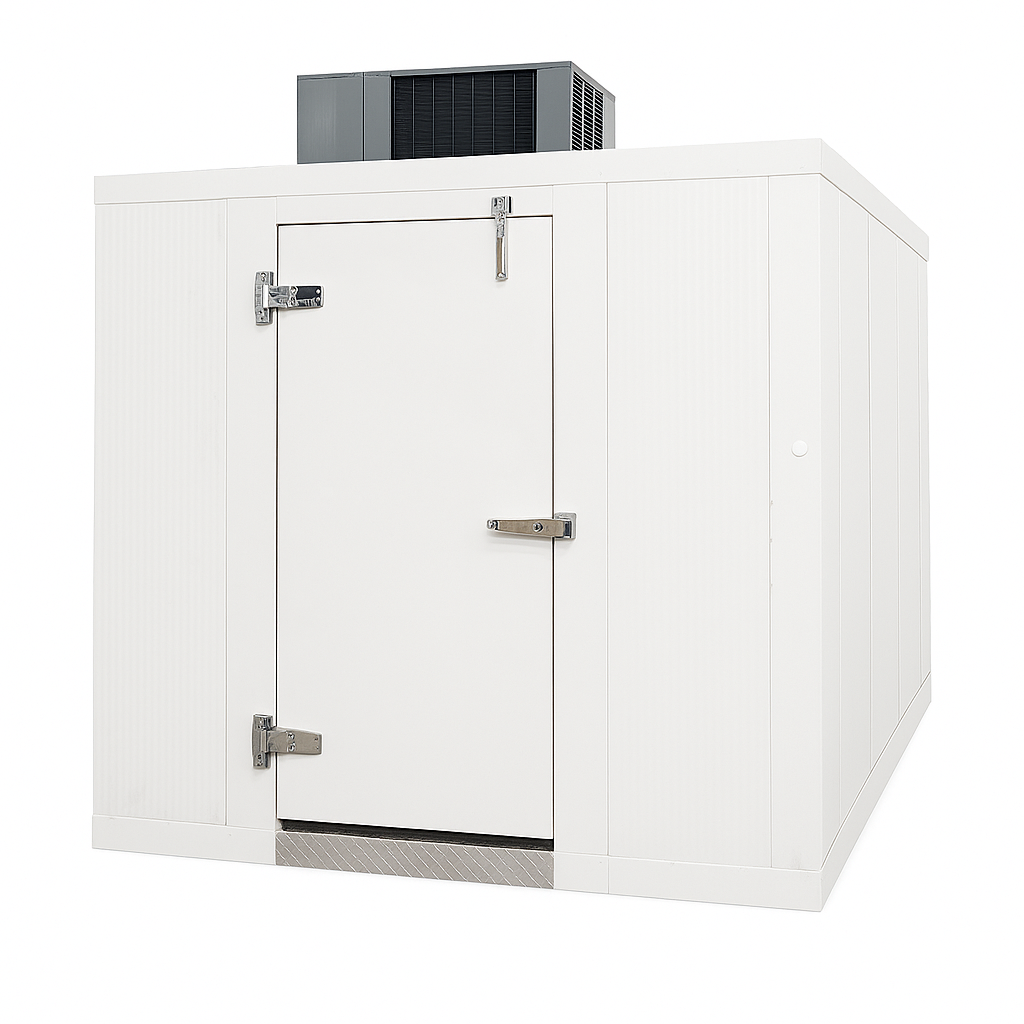

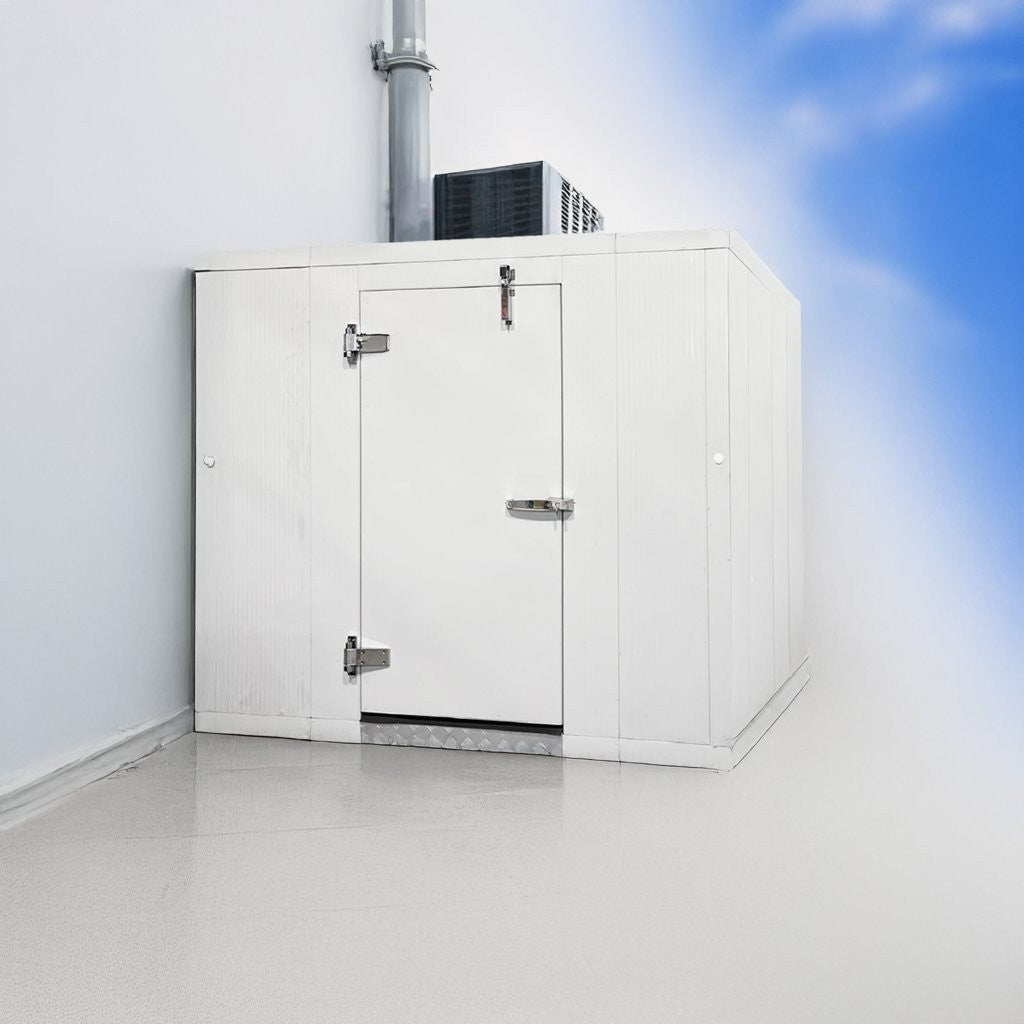

10 x 23 Walk-In Cooler Without Floor With Top-Mount Refrigeration
The Astra CNF10X23-TM offers 10 x 23 walk-in cooler without floor with top-mount refrigeration for grocery and supermarket storage planning. Use the model-specific specifications to compare the available space, floor configuration and refrigeration arrangement for your store.
Model configuration
- Model: CNF10X23-TM
- Nominal size: 10' x 23'
- Box type: Cooler
- Floor configuration: Without Floor
- Refrigeration: Top-Mount Refrigeration

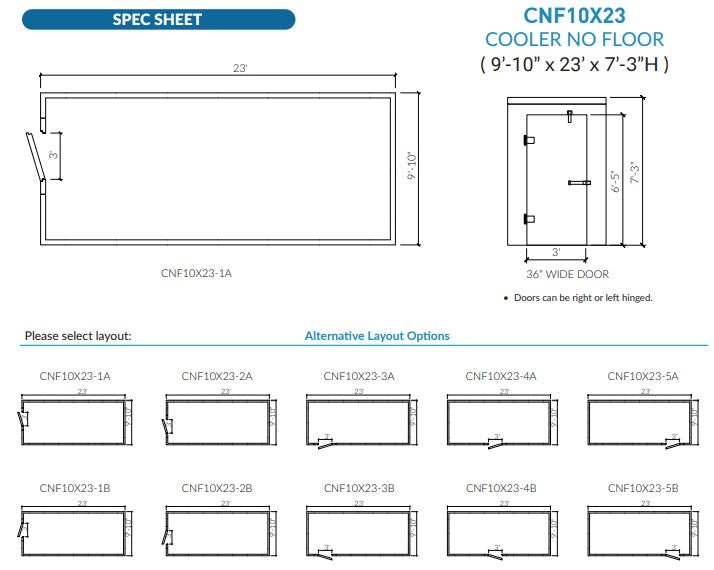

- External dimensions: 9' 10"W x 23' L x 7' 3"H
- Listed box shipping weight: 1769 lb
Refrigeration specification
Indoor Top Mount: 2 x Turbo Air Indoor Package Unit, Top-Mount, Smart 7, Medium Temp, 10,000 BTU, 208-230V/60Hz/1Ph, R290
Outdoor Top Mount: 2 x Turbo Air Outdoor Package Unit, Top-Mount, Smart 7, Medium Temp, 10,000 BTU, 208-230V/60Hz/1Ph, R290
Where indoor and outdoor equipment alternatives are listed, confirm the required application and final equipment selection before ordering; the alternatives are not both included.
Plan your installation
Nominal size is a product designation, not an installation clearance. Check the exact external dimensions, door location, required access and refrigeration clearances against the product drawings. Confirm site preparation, electrical service and installation scope before placing your order.
Need help comparing configurations or equipping a complete store? Request a quote from Supermarket World with your model number and project requirements.
