Description

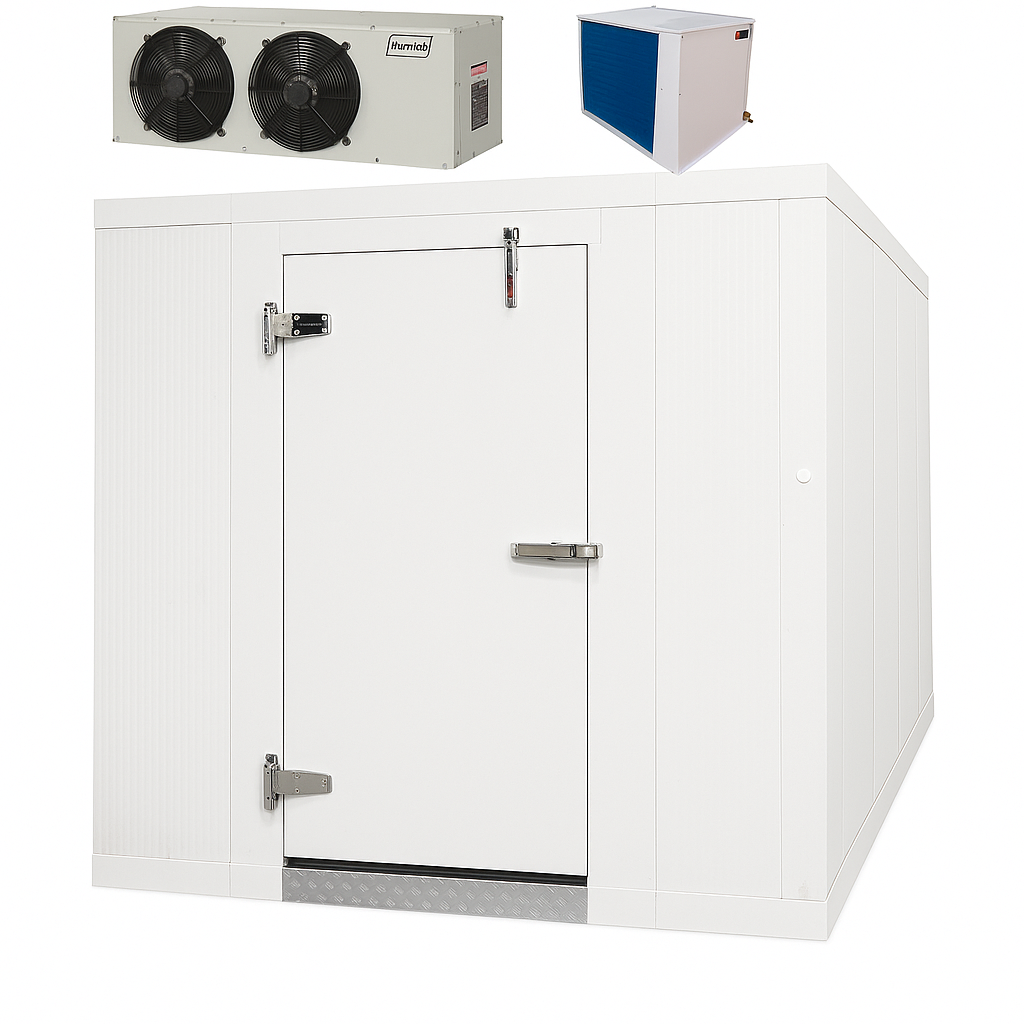

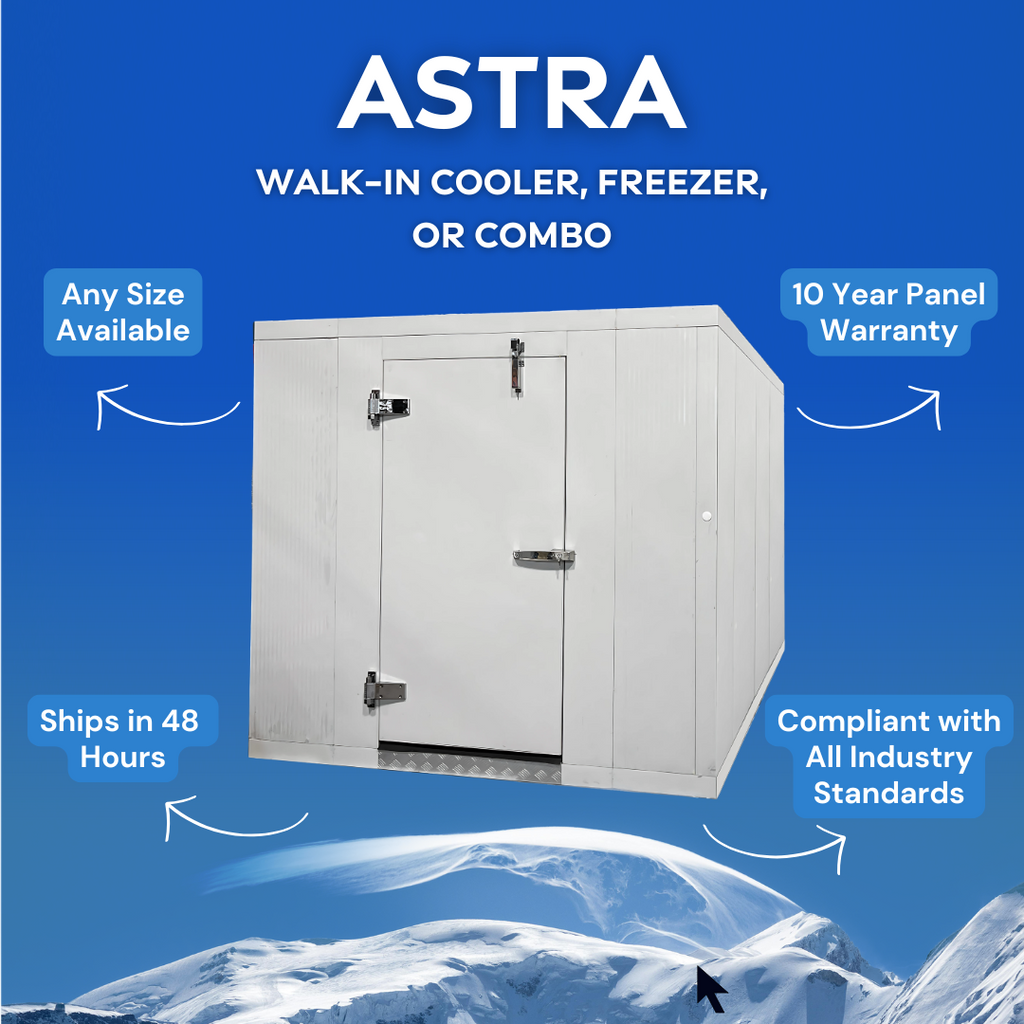

5 x 18 Walk-In Cooler Without Floor With Remote Refrigeration
The Astra CNF5X18-RM offers 5 x 18 walk-in cooler without floor with remote refrigeration for grocery and supermarket storage planning. Use the model-specific specifications to compare the available space, floor configuration and refrigeration arrangement for your store.
Model configuration
- Model: CNF5X18-RM
- Nominal size: 5' x 18'
- Box type: Cooler
- Floor configuration: Without Floor
- Refrigeration: Remote Refrigeration
- External dimensions: 4' 11"W x 18' 1"L x 7' 3"H
- Internal dimensions: 4' 3"W x 17' 5"L x 6' 11"H
- Listed box shipping weight: 1111 lb
Refrigeration specification
Condensing Unit: Turbo Air Outdoor Condensing Unit, 3/4 HP, Medium Temp, Air Cooled, 208-230V/60Hz/1Ph, Copeland Scroll Compressor, R404A, R407C, R448A / R449A
Evaporator: Turbo Air Evaporator, Air Defrost, EC Motor, Pre-Assembled (R448A, R449A TXV, Solenoid Valve, Digital Temperature Controller), 2 Fans, 8,900 BTU,115V/60Hz/1Ph
Where indoor and outdoor equipment alternatives are listed, confirm the required application and final equipment selection before ordering; the alternatives are not both included.
Plan your installation

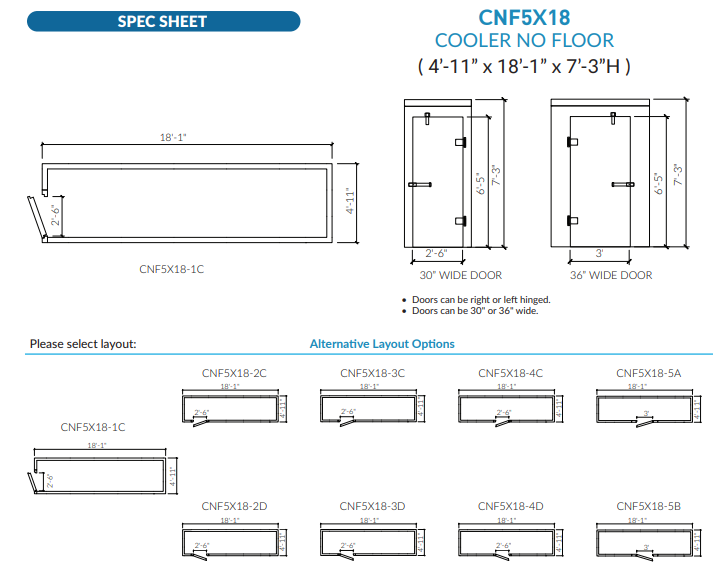

Nominal size is a product designation, not an installation clearance. Check the exact external dimensions, door location, required access and refrigeration clearances against the product drawings. Confirm site preparation, electrical service and installation scope before placing your order.
Need help comparing configurations or equipping a complete store? Request a quote from Supermarket World with your model number and project requirements.
Other configurations & accessories
These are separate product listings. Selecting a different configuration changes the product and price; accessories are not automatically included.
