Description
| Model number | IFS-40-E | |
| Power type | Electric | |
| Installation type | Floor model | |
| Total KW | 14 KW | |
| KW, volts, phase, amps | 14 KW 208V 3Ph 39 A 14 KW 240V 3Ph 34 A Available in 208 and 240 volts. Please indicate at time of order |
|
| Element style | Immersed serpentine | |
| KW | 14 | |
| Material | Stainless steel | |
| Oil capacity | 40 Lbs. (22 L) | |
| Frying area | 14" x 14" (356 x 356 mm) | |
| Cool zone | Cool zone area below elements | |
| Robotic welding | Yes | |
| Thermostat | Snap acting, 200° F - 400° F (93° C - 204° C) | |
| Crumb screen | Fine mesh | |
| Bottom drain | Recessed, 1-1/4" (32 mm) full port | |
| Number included | 2 | |
| Material | Nickel-plated wire mesh | |
| Dimensions | 6-1/2" x 12-3/4" x 5-1/4" (165 x 324 x 133 mm) | |
| Handle | Vinyl coated | |
| Wrap material | Stainless steel exterior, except back | |
| Basket hanger | Stainless steel | |
| Door | Stainless steel, double panel | |
| Width | 15-1/2" (394 mm) | |
| Depth | 30-1/2" (775 mm) | |
| Height | 44-1/8" (1121 mm) | |
| Bottom structure | Full structural support | |
| Legs | 6" (152 mm) Stainless steel | |
| Crated dimensions | 18" w x 34" d x 35" h (457 x 864 x 889 mm) | |
| Ship weight | 221 Lbs. (100 Kg) |

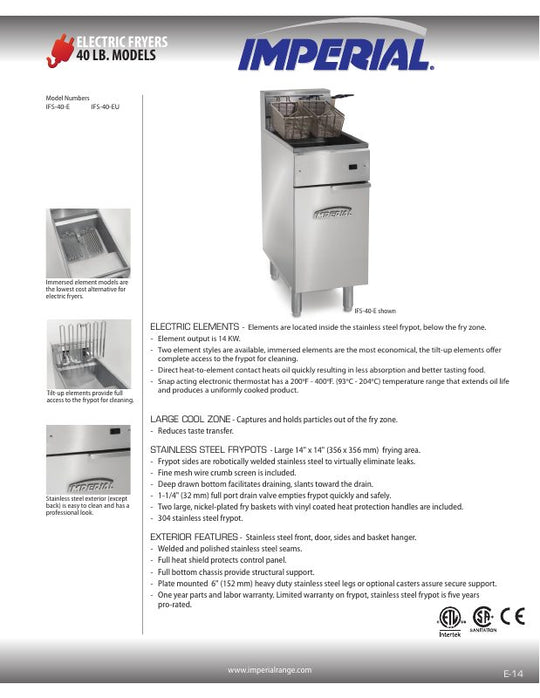

Spec Sheet
| Width | 12-23" |
| Depth | 30"-33" |
| Power Type | Electric |
| Capacity | 50-90 qt |
| Size | 5 |
