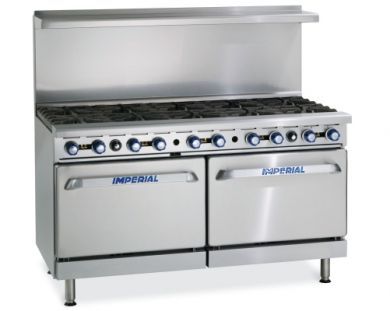

Imperial IR-10-LP 60" 10 Burner Gas Range with (2) Standard Ovens LP


Price:
Sale price$16,117.20

Description

Model number   IR-10
Power type   Liquid Propane
Manifold pressure   10.0
Manifold size   3/4" (19mm)
Total BTU/hr.   390,000 (114 KW)
Width   60" (1524 mm)
Installation type   Floor model
Open burner output   32,000 BTU (9 KW)
Low simmer output   7,000 BTU (2 KW)
Burner style   PyroCentric™, dual flame
Burner material   Cast iron
Number of burners   10 open burners
Removable   Yes
Ignition type   Pilot
Grate style   Anti-clogging, shield design
Grate material   Cast iron
Front grate size   12" x 11" (305 x 279 mm)
Back grate size   12" x 13" (305 x 330 mm)
Gaskets/screws   No
Cook top type   N/A
Burner output   N/A
Number of burners   N/A
Plate depth   N/A
Oven type   2 Standard
Burner BTU/hr. output   35,000 BTU (10 KW)
Burner description   Linear Burner
Thermostat range   150° F to 500° F (66° C to 260° C)
100% Safety pilot   Yes
Baffle system   Yes
Deflector panel   Yes
Cavity dimensions   Interior: 26-1/2" w x 26" d x 14" h (673 x 660 x 356 mm)
Cavity surface   Porcelainized interior
Door liner   Stamped
Racks   1 chrome rack included
Wrap material   Stainless steel exterior, except back
Control knobs   Aluminum with Valox™ heat protecting grip
Dimensions   60" w x 31-1/2" d x 56-1/2" (1524 x 800 x 1435 mm)
Legs   6" (152 mm) stainless steel, adjustable feet
Crated dimensions   62-1/2" w x 39" d x 35" h (1588 x 991 x 889 mm)
Ship weight   980 Lbs. (444 Kg)

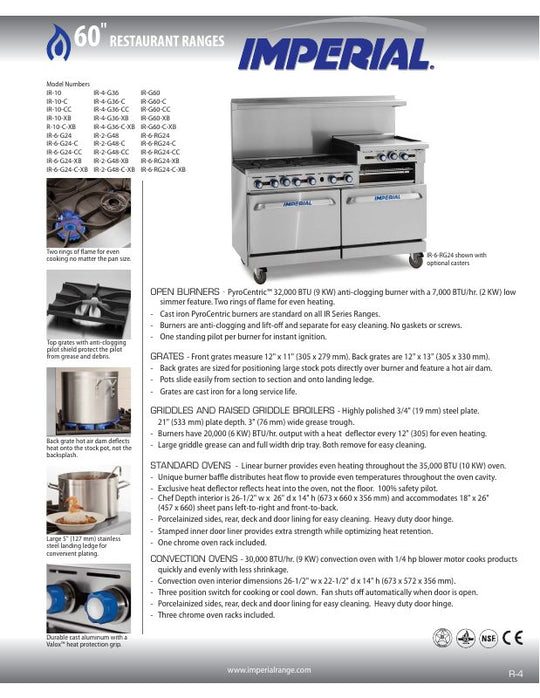

Spec Sheet
