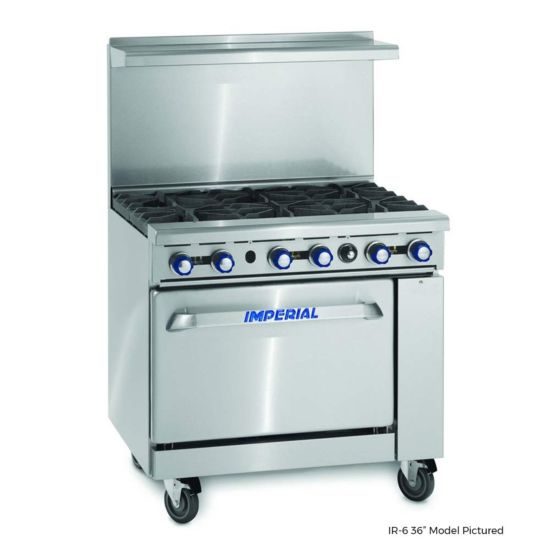

Imperial IR-6-C-NG 36" 6 Burner Gas Range with Convection Oven Natural Gas


Price:
Sale price$12,377.20

Description

Model number   IR-6-C
Power type   Natural Gas
Manifold pressure   5.0
Manifold size   3/4" (19mm)
Total BTU/hr.   222,000 (65 KW)
Width   36" (914 mm)
Installation type   Floor model
Open burner output   32,000 BTU (9 KW)
Low simmer output   7,000 BTU (2 KW)
Burner style   PyroCentric™, dual flame
Burner material   Cast iron
Number of burners   6 open burners
Removable   Yes
Ignition type   Pilot
Grate style   Anti-clogging, shield design
Grate material   Cast iron
Front grate size   12" x 11" (305 x 279 mm)
Back grate size   12" x 13" (305 x 330 mm)
Gaskets/screws   No
Oven type   Convection
Burner BTU/hr. output   30,000 BTU (9 KW)
Burner description   Linear Burner
Thermostat range   150° F to 500° F (66° C to 260° C)
100% Safety pilot   Yes
Baffle system   Yes
Deflector panel   Yes
Cavity dimensions   Interior: 26-1/2" w x 22-1/2" d x 14" h (673 x 572 x 356 mm)
Cavity surface   Porcelainized interior
Door liner   Stamped
Racks   3 chrome racks included
Wrap material   Stainless steel exterior, except back
Control knobs   Aluminum with Valox™ heat protecting grip
Dimensions   36" w x 31-1/2" d x 56-1/2" (914 x 800 x 1435 mm)
Legs   6" (152 mm) stainless steel, adjustable feet
Crated dimensions   38-1/2" w x 39" d x 35" h (978 x 991 x 889 mm)
Ship weight   665 Lbs. (301 Kg)

Spec. Sheet
