Description
| Model number | IR-6 | |
| Power type | Liquid Propane |
|
| Manifold pressure | 10.0 | |
| Manifold size | 3/4" (19mm) | |
| Total BTU/hr. | 227,000 (67 KW) | |
| Width | 36" (914 mm) | |
| Installation type | Floor model | |
| Open burner output | 32,000 BTU (9 KW) | |
| Low simmer output | 7,000 BTU (2 KW) | |
| Burner style | PyroCentric™, dual flame | |
| Burner material | Cast iron | |
| Number of burners | 6 open burners | |
| Removable | Yes | |
| Ignition type | Pilot | |
| Grate style | Anti-clogging, shield design | |
| Grate material | Cast iron | |
| Front grate size | 12" x 11" (305 x 279 mm) | |
| Back grate size | 12" x 13" (305 x 330 mm) | |
| Gaskets/screws | No | |
| Oven type | Standard | |
| Burner BTU/hr. output | 35,000 BTU (10 KW) | |
| Burner description | Linear Burner | |
| Thermostat range | 150° F to 500° F (66° C to 260° C) | |
| 100% Safety pilot | Yes | |
| Baffle system | Yes | |
| Deflector panel | Yes | |
| Cavity dimensions | Interior: 26-1/2" w x 26" d x 14" h (673 x 660 x 356 mm) | |
| Cavity surface | Porcelainized interior | |
| Door liner | Stamped | |
| Racks | 1 chrome rack included | |
| Wrap material | Stainless steel exterior, except back | |
| Control knobs | Aluminum with Valox™ heat protecting grip | |
| Dimensions | 36" w x 31-1/2" d x 56-1/2" (914 x 800 x 1435 mm) | |
| Legs | 6" (152 mm) stainless steel, adjustable feet | |
| Crated dimensions | 38-1/2" w x 39" d x 35" h (978 x 991 x 889 mm) | |
| Ship weight | 605 Lbs. (274 Kg) |

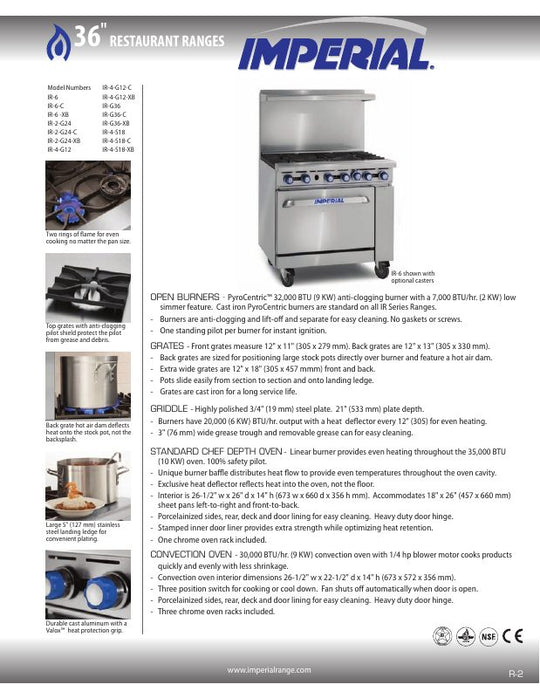

Spec Sheet
| Width | 36-47" |
| Power Type | LP |
| BTU | 140K+ |
| Wattage | 48+ kW |
| Number of Burners | 6 |
| Size | 6 |
| Oven Type | Standard Oven |
