Description

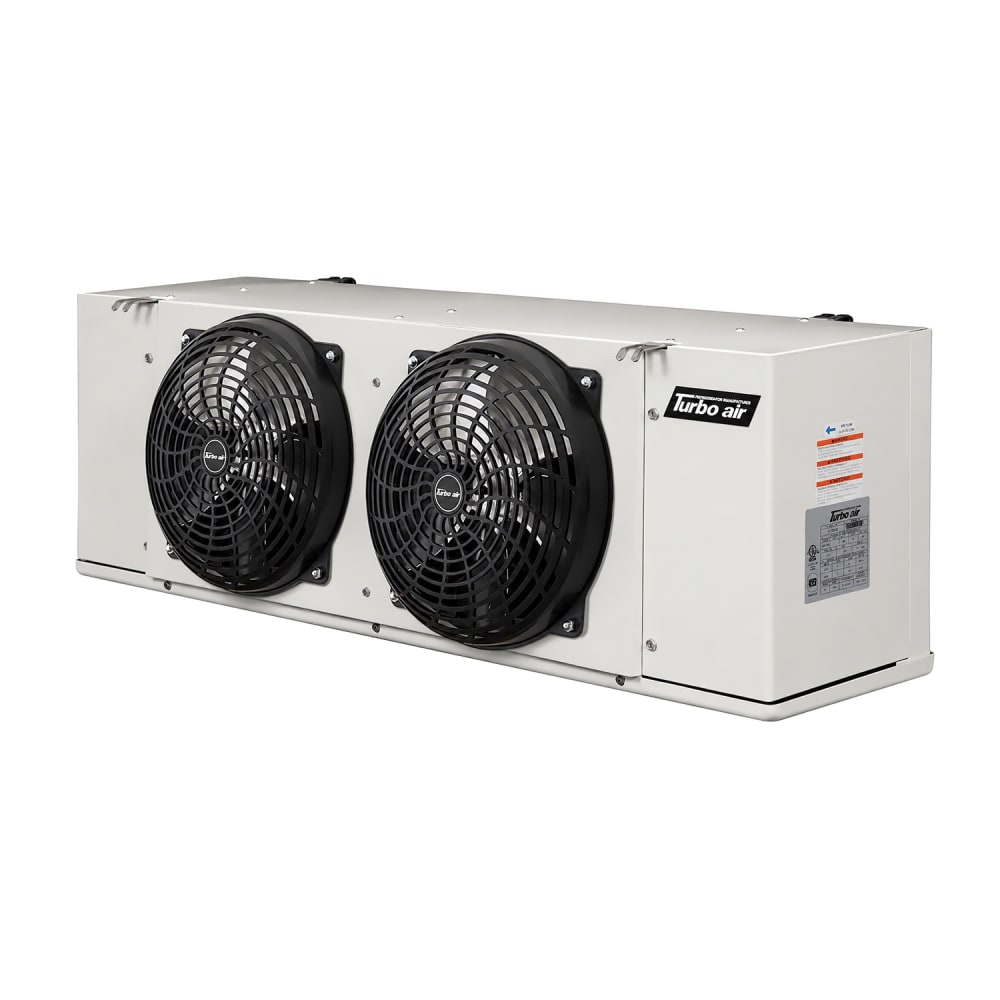

The Turbo Air ADR112AENX is a low-profile evaporator coil for indoor walk-in refrigeration. This unit cooler uses air defrost and has a listed capacity of 11,234 BTU. Its electrical specification is 115V, single-phase, 60 Hz, and the refrigerant specification lists R-448A.
Coil construction and airflow
Blue anti-corrosion fins are part of the coil construction. The tube circuitry is optimized within the coil design. The design includes a high-efficiency heat exchanger and a low-air-resistance coil.
An EC motor with dual-speed and dual-voltage capability is listed; the specified supply for this model remains 115V.
Defrost, controls and access
Air defrost is specified for the ADR112AENX.
Dimensions and ordering checks
Overall dimensions are 45.38 inches wide, 15.44 inches deep and 16.19 inches high. This model is intended for mounting inside the walk-in. Check the available space, 115V supply and required control configuration before choosing it for an installation or replacement.
The product information identifies UL and cUL certification, along with NSF. The listed warranty is one year for parts. Confirm application compatibility using the complete model number, rather than assuming that similarly named coils have the same valves, controls or electrical requirements.

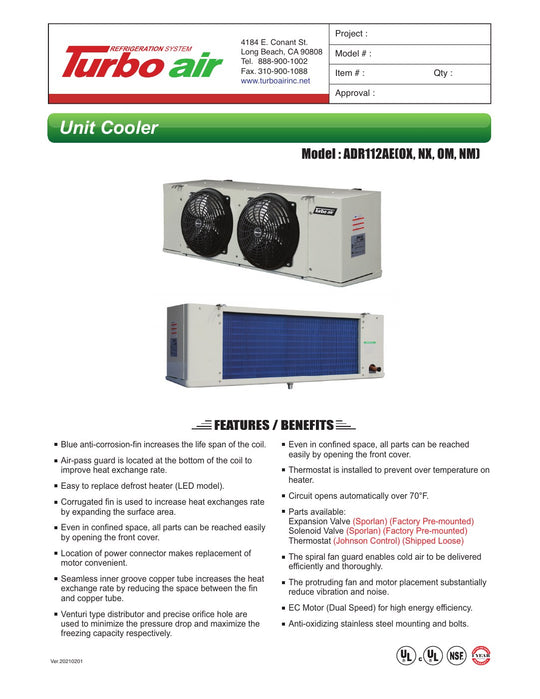

The available ADR112AENX technical document can be opened from Product Documents. Have your refrigeration professional check capacity and component matching for the project; the listed BTU figure is not, by itself, a recommendation for a particular walk-in room size.
