Description

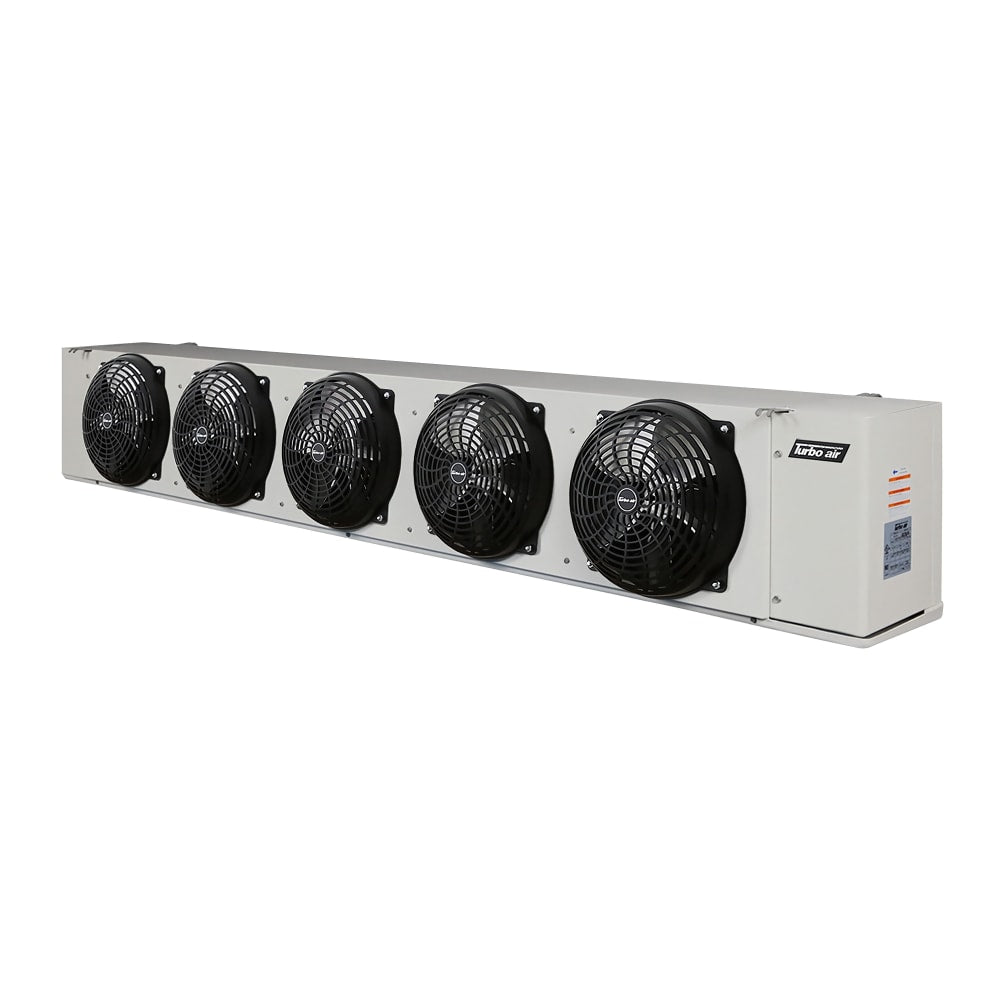

The Turbo Air ADR325AENC is a low-profile evaporator coil for indoor walk-in refrigeration. This unit cooler uses air defrost and has a listed capacity of 32,519 BTU. Its electrical specification is 115V, single-phase, 60 Hz, and the refrigerant specification lists R-448A.
Coil construction and airflow
Blue anti-corrosion fins are part of the coil construction. The tube circuitry is optimized within the coil design. The design includes a high-efficiency heat exchanger and a low-air-resistance coil.
An EC motor with dual-speed and dual-voltage capability is listed; the specified supply for this model remains 115V.
Defrost, controls and access
Air defrost is specified for the ADR325AENC. A digital thermostat is included in this configuration. A solenoid valve is included.
Dimensions and ordering checks
Overall dimensions are 93.5 inches wide, 15.44 inches deep and 16.19 inches high. This model is intended for mounting inside the walk-in. Check the available space, 115V supply and required control configuration before choosing it for an installation or replacement.
The product information identifies UL and cUL certification, along with NSF. The listed warranty is one year for parts. Confirm application compatibility using the complete model number, rather than assuming that similarly named coils have the same valves, controls or electrical requirements.
