Description

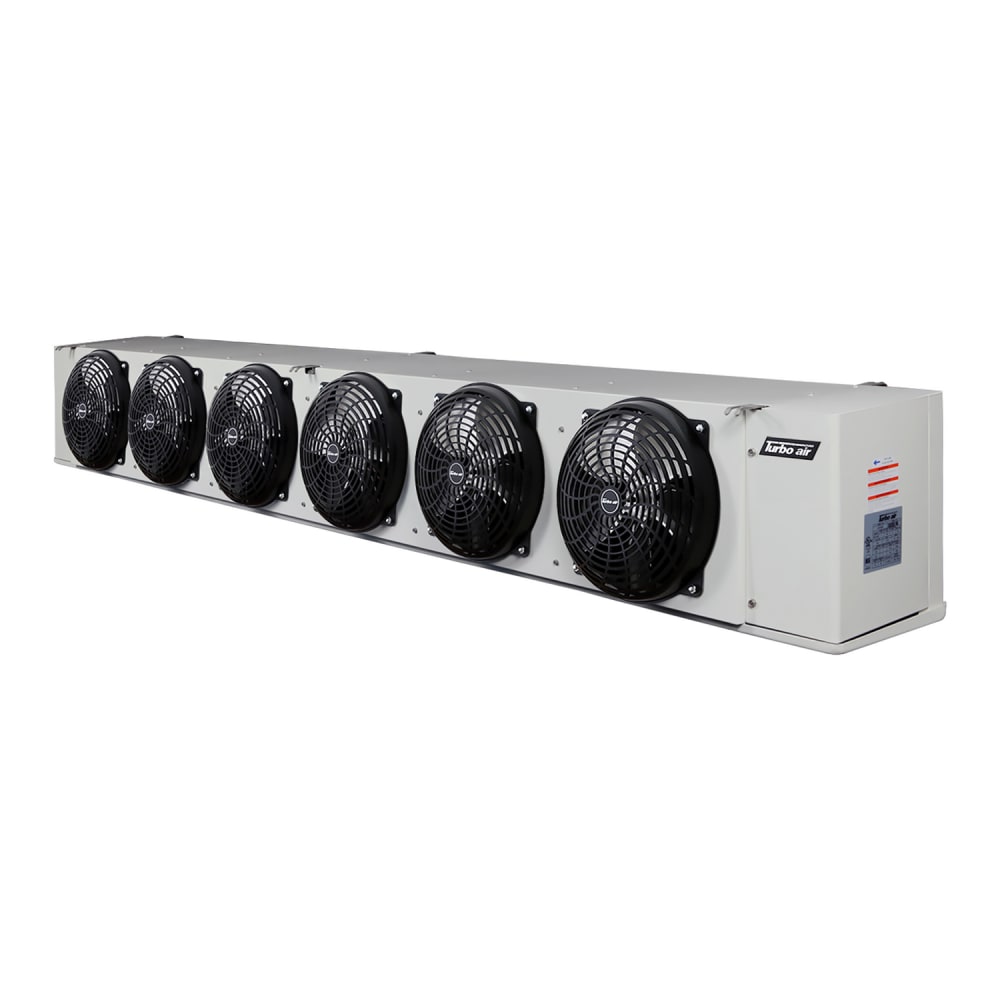

The Turbo Air LED244BENC is a low-profile evaporator coil for indoor walk-in refrigeration. This unit cooler uses electric defrost and has a listed capacity of 24,456 BTU. Its electrical specification is 208–230V, single-phase, 60 Hz, and the refrigerant specification lists R-448A.
Coil construction and airflow
Blue anti-corrosion fins are part of the coil construction. The copper tubing is seamless and internally grooved. Its fin design is corrugated. Refrigerant distribution uses a venturi-type distributor and a precise orifice opening.
Air movement is driven by an EC motor. An air-pass guard is included. The fan uses a spiral guard. The fan and motor have a protruding placement. The design incorporates its own airflow arrangement.
Defrost, controls and access
Electric defrost is specified for the LED244BENC. A digital thermostat is included in this configuration. A solenoid valve is included. Thermostat heater protection is part of the design. The coil has a front-access design. The mounting hardware and bolts are anti-oxidizing stainless steel.
Dimensions and ordering checks
Overall dimensions are 109.5 inches wide, 15.44 inches deep and 16.19 inches high. This model is intended for mounting inside the walk-in. Check the available space, 208–230V supply and required control configuration before choosing it for an installation or replacement.
The product information identifies UL and cUL certification, along with NSF. The listed warranty is one year for parts. Confirm application compatibility using the complete model number, rather than assuming that similarly named coils have the same valves, controls or electrical requirements.

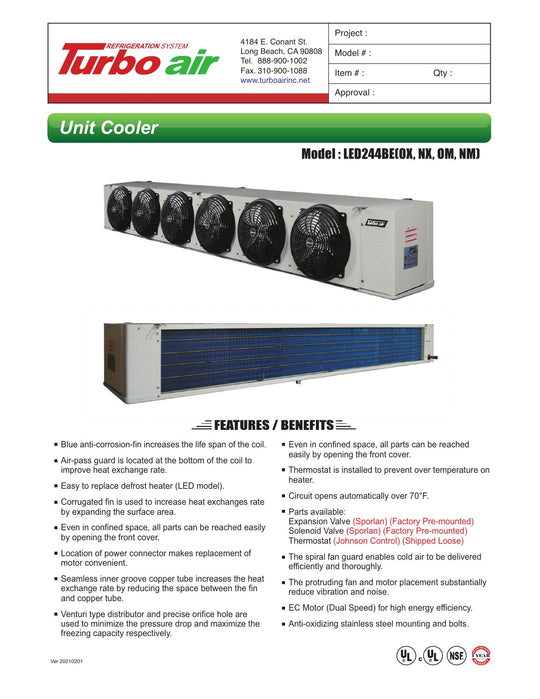

The available LED244BENC technical document can be opened from Product Documents. Have your refrigeration professional check capacity and component matching for the project; the listed BTU figure is not, by itself, a recommendation for a particular walk-in room size.
