Description

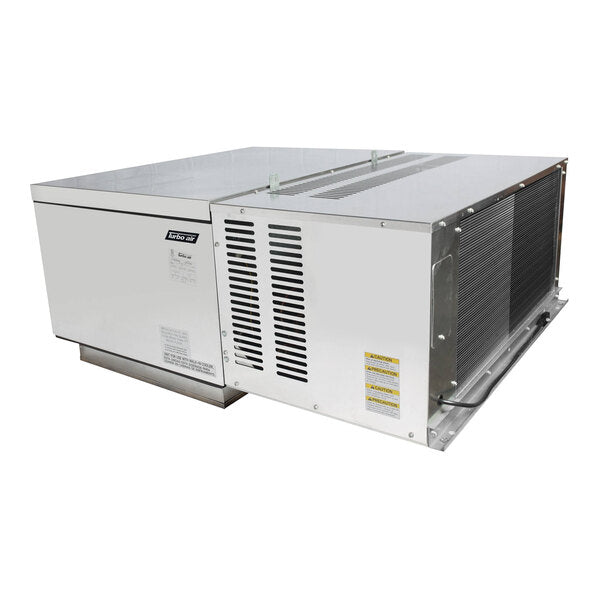

The Turbo Air STI050LP2 SMART 7 is a self-contained walk-in freezer refrigeration system for indoor use. This low-temperature model has a listed cooling capacity of 5,500 BTU and operates on 208–230V, single-phase power. Its model-specific electrical requirements and dimensions are outlined below to help you compare it with your installation requirements.
Self-contained refrigeration and defrost
The refrigeration system comes pre-charged with R-290 refrigerant. An EC motor, a hot-gas condensate system and hot-gas defrost are included in the design. This self-contained SMART 7 configuration brings those features together in the STI050LP2 refrigeration unit, rather than presenting them as individual component listings.
Electrical requirements and dimensions
Electrical specifications are 208–230V, single-phase, 60 Hz, with a listed current of 12.2 Amps and a NEMA 6-20P plug. The unit measures 53 1/2 Inches wide, 42 1/8 Inches deep and 25 5/8 Inches high. Check these measurements and the required power supply against the installation location before placing an order.
The finish is silver, the listed shipping weight is 305 lb., and the product specifications identify UL certification. Include the shipping weight and overall dimensions when planning delivery access to the installation location.
Selecting this SMART 7 configuration
Choose the STI050LP2 when your project calls for the listed indoor, low-temperature configuration. The 5,500 BTU figure alone does not establish a suitable walk-in room size. Have your refrigeration professional check the project requirements, installation details and exact model documentation before confirming a match.

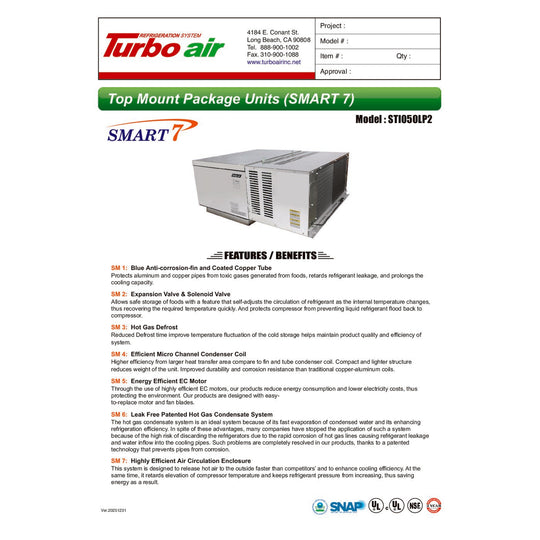

The Product Documents panel contains the available specification sheet, user manual and warranty document. Review those files for installation instructions and warranty terms rather than assuming they are identical across every SMART 7 model.
